The New LT-400 Mobile Truck Wheel Alignment System

Targets

· 5 units

· Size — 285mm x 110mm each

· Polypropylene backing which is   highly flexible and durable

· Units of measure is millimetres

The LT-400 Mobile Truck Wheel Alignment Systems consists of a lightweight aluminium construction which is powder coated for extra durability.

Its professional and rugged simple design can easily be used on all rim sizes — trucks, trailers and including cranes, wherever these brackets can be securely mounted.

Wheel Brackets:

· 2x 10mm aluminium brackets

· Powder coated for durability

· 3x aluminium knobs to position the short legs onto the rim (can be replaced with the long legs, which are also included)

· Bracket maximum reach 580mm diameter between mounting magnets

· 3x 3D printed coloured knobs to adjust calibration.

Training

· Training for use of the LT-400 System can be provided but a “LT-400 User Manual” is included / can be emailed to existing customers.

· Any additional training needs such as new staff using our equipment, or you want training at your location of choice can be arranged at an additional cost.

· TRAINING VIDEOS has been updated and is shareable with our customers via a Google Drive link.

Magnet Trailer Target Holders.

· Used for trailer alignment (chassis as reference) and to determine Straight Ahead Position

· Made of polished aluminium

· 2 units

The LT-400 can measure caster, camber and toe which is the 3 basics of wheel alignment!  It can measure alignment on horse (semi) – front and rear, as well as all trailer axles.

Whether you just want to keep your fleets’ wheel alignment up to date or wanting to start your own business doing truck wheel alignment, you will find that our equipment is up to the task!

Spring Bracket Clamps

· For use in securing to aluminium rims where magnets don’t work.

· 4 units

· Made up of stainless steel and / or zinc plated cast iron parts

Extra’s:

· 1 Dual battery Universal Li-Ion Battery charger (2000mA, fast charging and safe USB port)

· 2 extra lithium batteries

· 2 extra laser back-up switches

· Allen key (to calibrate Laser)

· 6 rim clips

Quality of the LT-400 is ensured with the high precision profile cutting of the parts and the keen attention to detail in the finishing off, is clearly visible on this system.

Manufacturing also includes plasma cutting, 3-D printing, engraving as well as intricate lathe work just to give our customers a product we can be proud of!

Target stands

· Made of polished aluminium

· Length 1.2m and with extensions a maximum distance between zero’s is 3.4m

· 2 units / main stands

· 1 stand has incorporated magnet for trailer kingpin mounting

Lasers

· 2 units

· Rechargeable lithium batteries (CR123A)

· User calibratable (video available)

· Size — 120mm x 36mm, weight 144g

· 3V voltage and 5mw wattage

· 2 extra batteries & dual battery charger — see Extra’s

· now equipped / upgraded with bearings for smooth running & longer lasting lifespan.

Tape Measure

· 1 unit

· 5m x 19mm

Inclinometer

· Used for measuring caster & camber

· User calibratable

· Weight 71g

· Dimensions 58mm x 58mm x 32mm

· 1 unit

· Uses 2x 1.5V AAA batteries

· Measuring range +/- 0.01°

· Built-in powerful magnet

· Fully user calibratable

Long legs

· Used on certain rims for which the short legs (already included) do not reach

· 2 sets of 3 included

· Made of polished aluminium

Plywood Storage Box

· Sturdy 12mm thick wooden box for transporting your LT-400 System (turnplates are kept separate)

· Size — 1230mm x 380mm x 470mm

· Weight including content is 30kg

Floor Scales

· Sizes — length 705mm x width 350mm

· 2 units

· Polypropylene backing which is   highly flexible and durable

· Units of measurement is degrees

 A handle machined into Wheel Brackets for easy transport and to ensure it is not moved around by carrying it on the Laser itself.

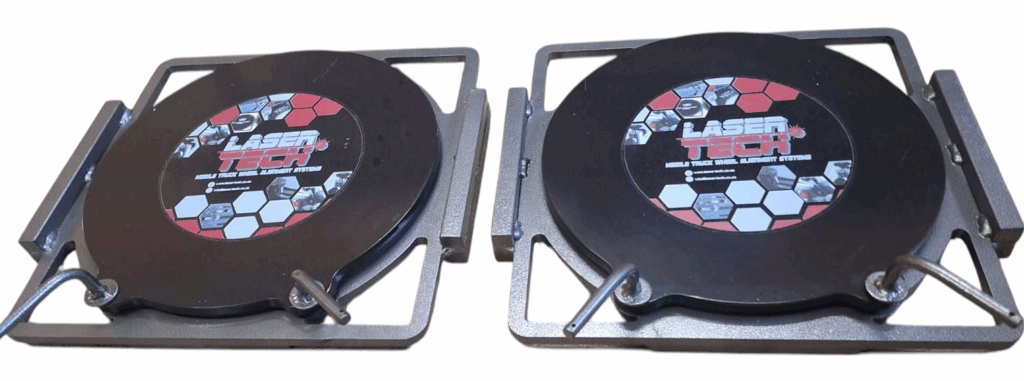

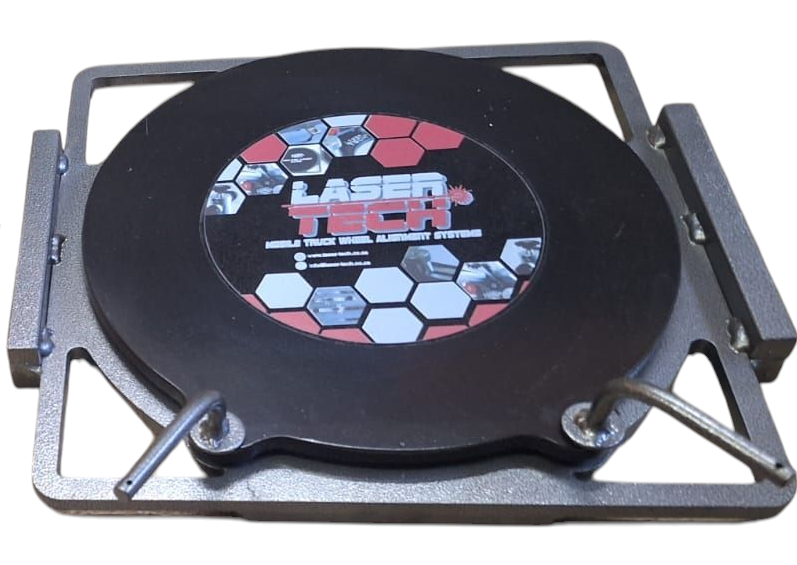

Turntables

· Steel 10mm baseplate

· Steel 6mm top plate

· Both powder coated for durability

· Weight 15kg each

· Size — 400mm x 400mm

· now equipped with bearings for smoother movement and to improve accuracy

· Spirit Level Bubble attached to above shaft to aid in keeping the Laser pointing down at 90°

· 2x machined mounted Lasers for precision reading onto target boards with a 3D printed knob to secure Laser into laser head assembly.

· laser modules now with improved quality and longer lasting modules

· lasers are fully user calibratable
